KEY FEATURES

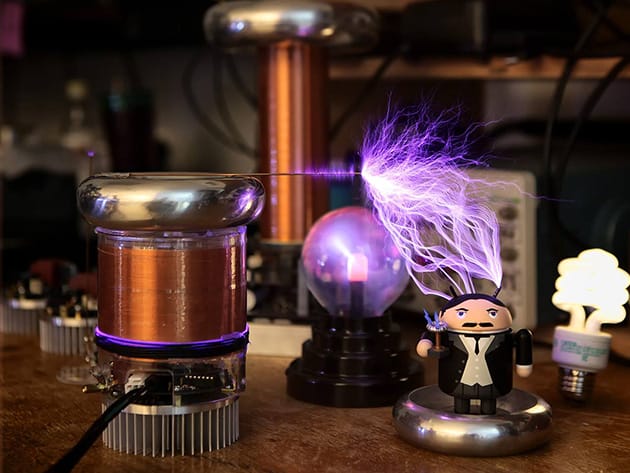

tinyTesla is an SSTC mini musical Tesla coil with USB connectivity, perfect for newcomers to the hobby and seasoned experts alike. Ideal for budding coilers or students looking for an eye-catching science fair project, this kit comes with all the electronic and hardware components you need to build your very own singing Tesla coil. Just plug into a laptop and start listening!

• Completed kit shoots sparks up to 4 inches long
• USB interrupter allows you to control your Tesla coil from a laptop
• Play MIDI files & make music using the sparks themselves
• Small size & low component count makes it easy to assemble
• Ideal for newcomers to the Tesla coiling hobby, as well as seasoned DIY electronics enthusiasts

PRODUCT SPECS

Details & Requirements

• Coil type: single-resonant solid-state (SSTC)
• Bus voltage: 340V nominal
• Power inverter: 2x IRGB4620DPBF
• Inverter configuration: half-bridge
• Secondary: 3.5″ x 3.5″, 40AWG magnet wire
• Primary: 6 turns, 22AWG teflon wire
• Power consumption: 50W nominal
• Inputs: USB (as HID MIDI device), MIDI (via third-party software)

Includes

• For a full list of what’s included, click here.
